Information
The drum of this electric drum carder is 19cm (7 1/2”) wide. It is designed to handle production carding use and is available with 46 tpi and 72 tpi cloth. Our cloth is made of Nickle plated teeth on a cotton cloth with a water resistant rubber coating. Which gives the Louet electric drum carder a long life cycle.

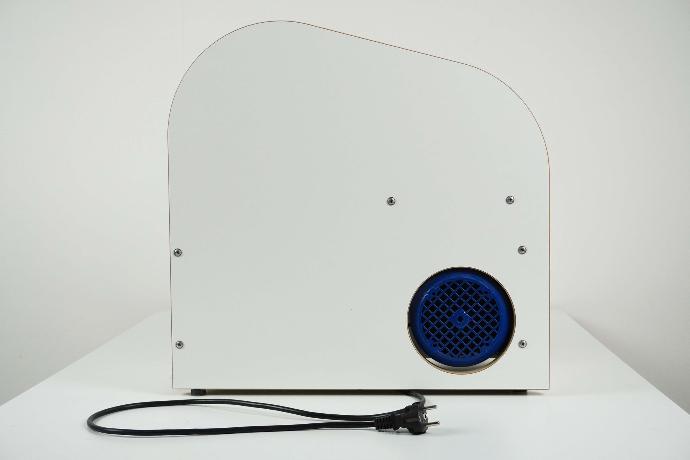

The electric drum carder is equipped with a powerful built-in 370 W motor (230 Volt -5 0 Hz), which drives the big drum with a geared V-belt system to approximately 90 r.p.m. A switch is located in the front panel. It has 46 tpi carding cloth and 19 cm (8”) wide drums. Drum capacity is approximately 80 grams

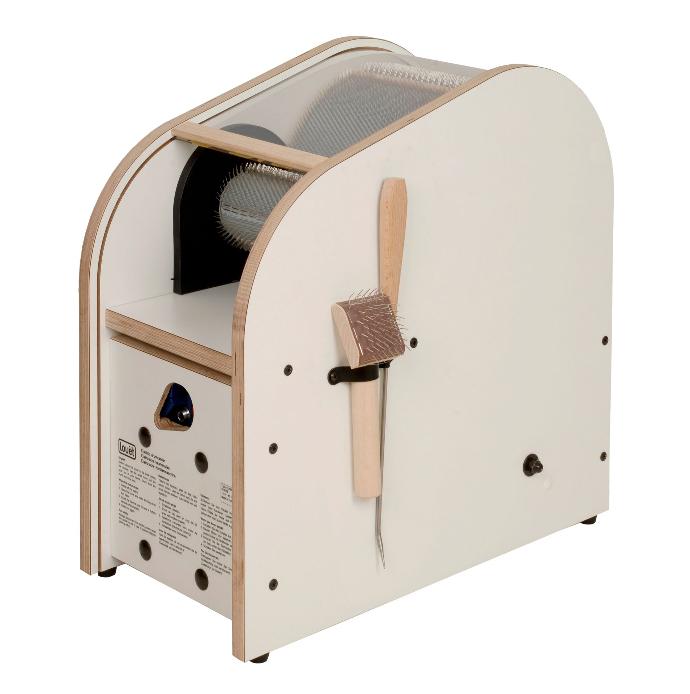

The electric drum carder lends itself to effortless, two hand feeding. It comes complete with transparent plastic protection cover for safety, doffer brush, doffer pin and carding booklet. The electric drum carder sits on rubber feet, due to the weight of the carder, it does not need to be fastened to a table. In the event of overheating, the motor switches off automatically. The Drum Carder has an on off switch. To be able to use the switch, you have to slide the security cover over the drums. If you then slide the cover back to remove the fleece from the roller, the switch is covered again, preventing the motor's operation.

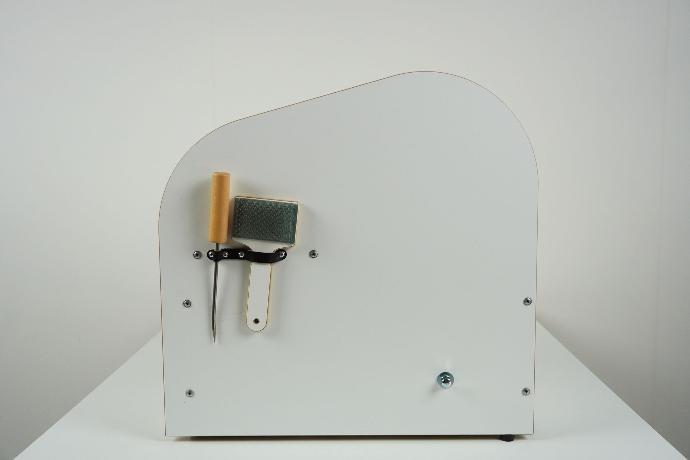

The frame of the carder is made of water resistant sealed birch plywood with a white HPL outer coating. The Carder is delivered fully assembled. The carder is delivered with an instruction manual, user guide written by Deb Menz, doffer brush, and an extra long doffer pin.
In carders, as a rule, the acceleration between the rollers is stated. For the this carder it is 4:1. However, more important for the effectiveness of the carder is the difference in surface speed between the large and the small roller. To calculate this, multiply the acceleration by the ratio of the diameters of the two rollers. For the Electric drum carder, this speed ratio is 9:1.
Additional information
| Dimensions of large drum | 19 cm wide and 25 cm in diameter |
|---|---|
| Carding cloth | Cloth density: 46 tpi of 72 tpi; length of teeth: 14 mm |
| Motor | 230 V – 370 W |
| Wood type | Water proof birch plywood wth a white HPL top layer |
| Weight | 22 kg (49lb) |
| Capacity | Approximately. 80 gram per batt |
Product numbers

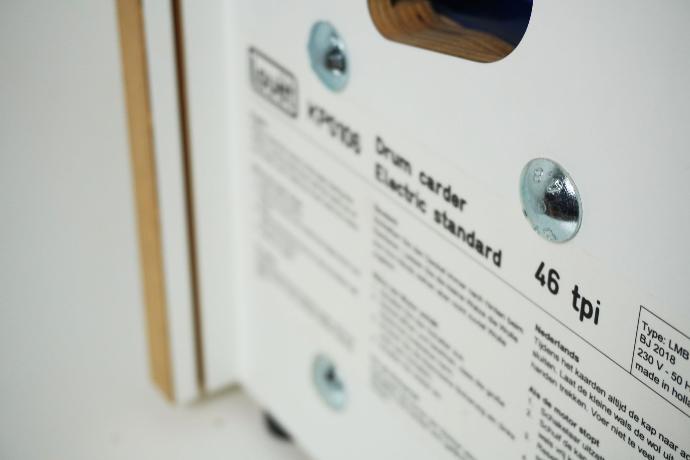

KP0106: Electric Drum Carder, Standard 46 tpi
KP0116: Electric Drum Carder Standard 72 tpi
