Information

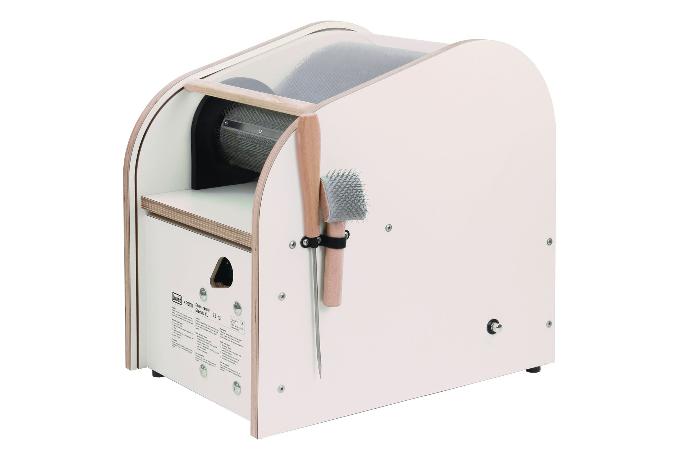

The electric drum carder XL is equipped with a powerful built-in 370 W motor (230 Volt -50 Hz), which drives the big drum with a geared V-belt system to approximately 90 r.p.m. A switch is located in the front panel. The machine runs smoothly and with the choice of 46 or 72 tpi carding cloth it is suitable for all fibres.

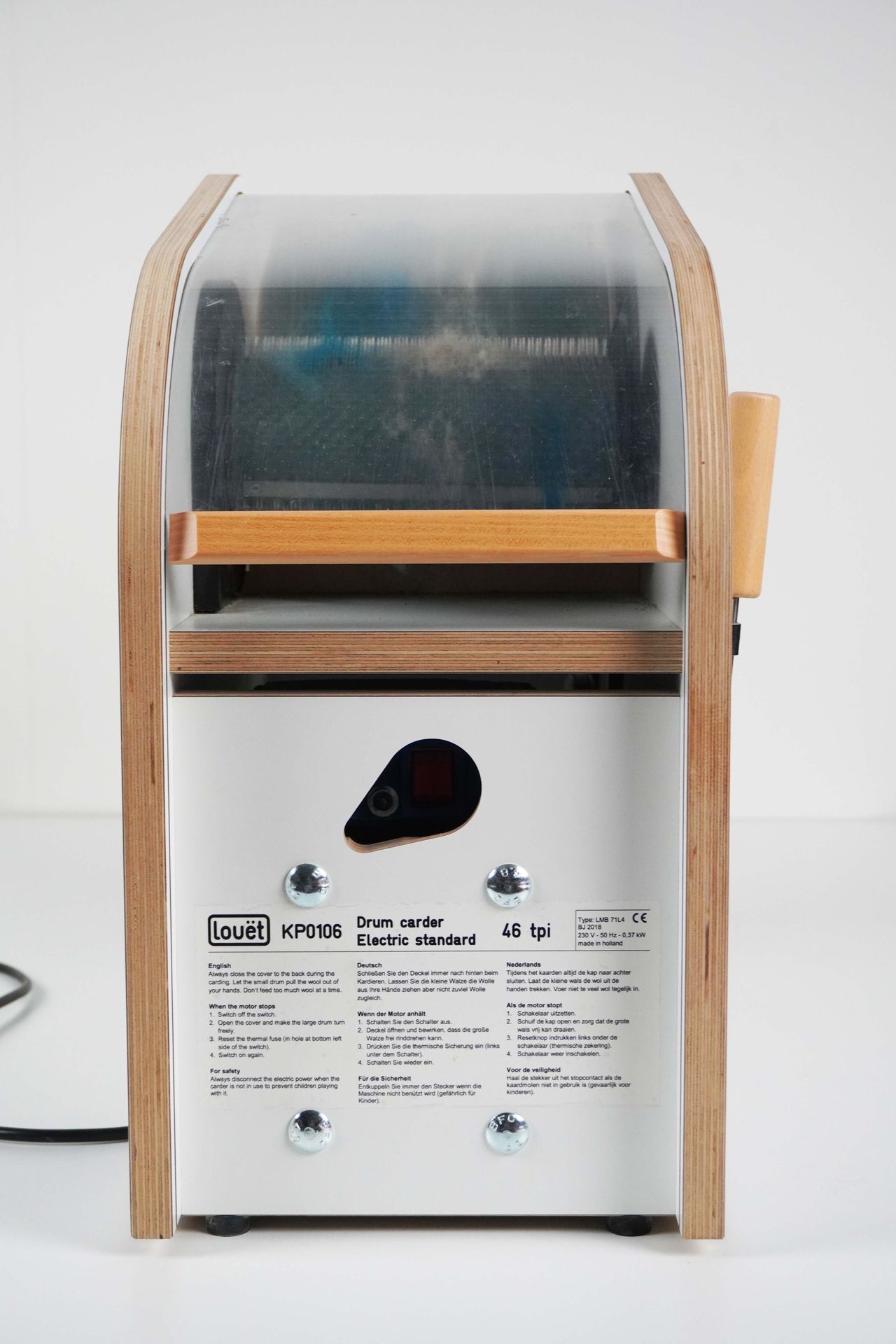

The electric drum carder is equipped with a powerful built-in 370 W motor (230 Volt -5 0 Hz), which drives the big drum with a geared V-belt system to approximately 90 r.p.m. A switch is located in the front panel. It has 46 tpi carding cloth and 19 cm (8”) wide drums. Drum capacity is approximately 80 grams

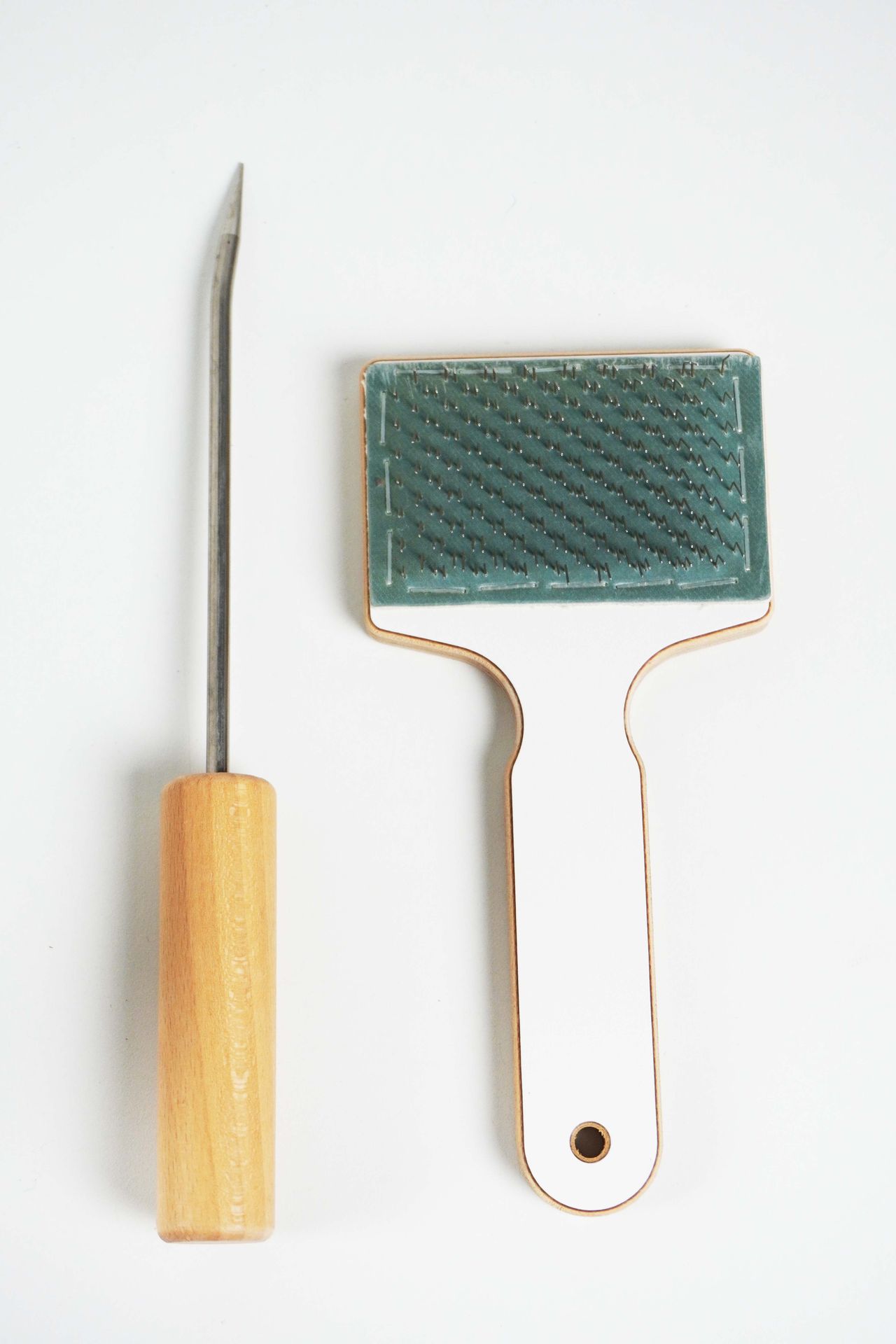

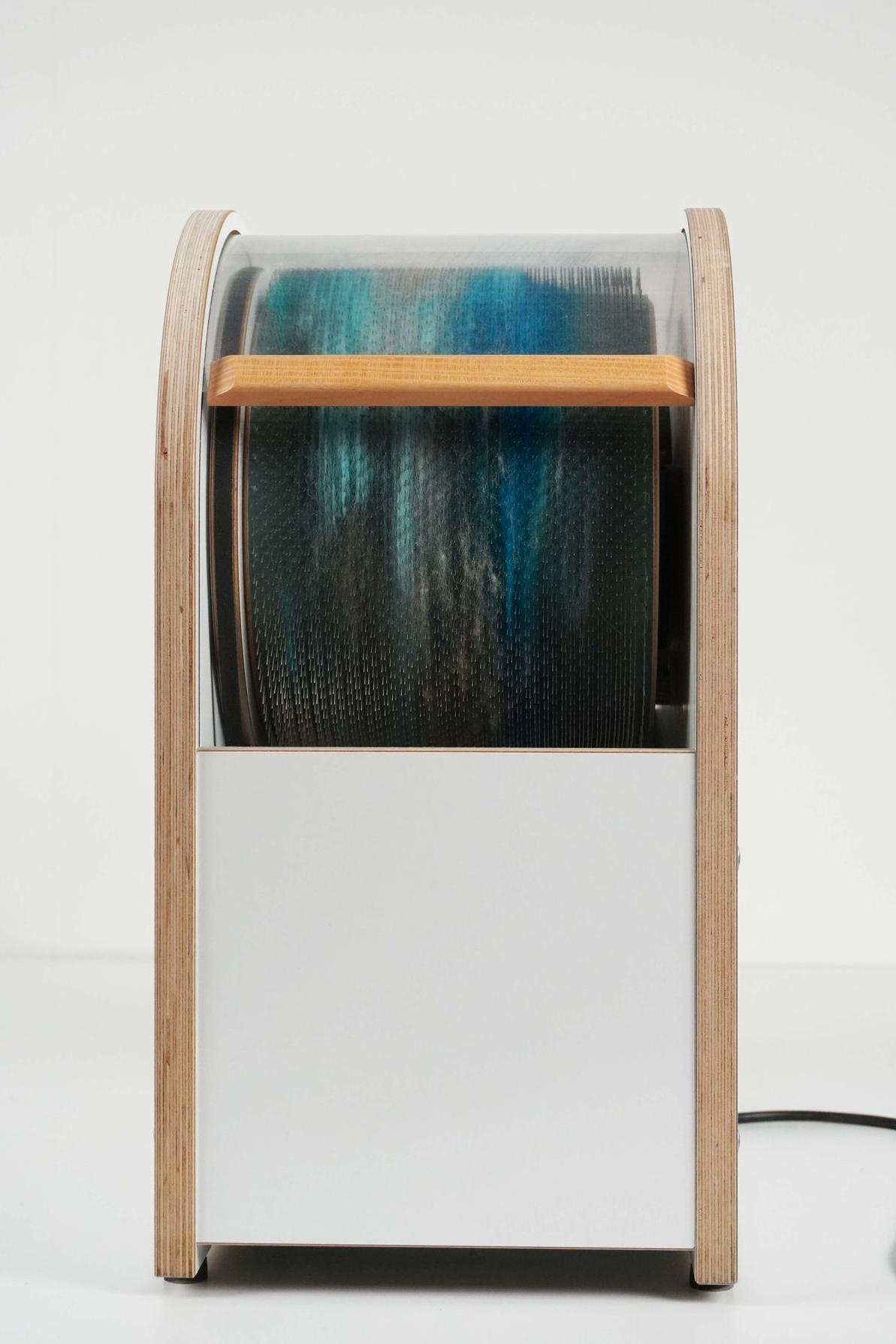

The electric drum carder lends itself to effortless, two hand feeding. It comes complete with transparent plastic protection cover for safety, doffer brush, doffer pin and carding booklet. It rests on 4 rubber feet and due to its weight does not need to be clamped down. If the Carder overheats, it has an automatic shut down system. There is an automatic safety switch. If the plastic protective shield is rolled forward to expose the drum, the motor will not turn back on until the protective cover is returned to its protective position.
In carders, as a rule, the acceleration between the rollers is stated. For this carder it is 4:1. However, more important for the effectiveness of the carder is the difference in surface speed between the large and the small drum. To calculate this, multiply the acceleration by the ratio of the diameters of the two drums. For the Electric Drum Carder, this speed ratio is 9:1.
Additional information
| Dimensions of large drum | 30 cm wide and 25 cm in diameter |
|---|---|
| Cloth | Cloth density: 46 tpi of 72 tpi; length of teeth: 14 mm |
| Motor | 230 V – 370 W |
| Wood type | Water proof birch plywood wth a white HPL top layer |
| Weight | 26 kg |
| Capacity | Approximately. 120 gram per batt |
Product numbers
KP0117: Electric Drum Carder, XL 46 tpi – 230V
KP0118: Electric Drum Carder, XL 72 tpi – 230V
