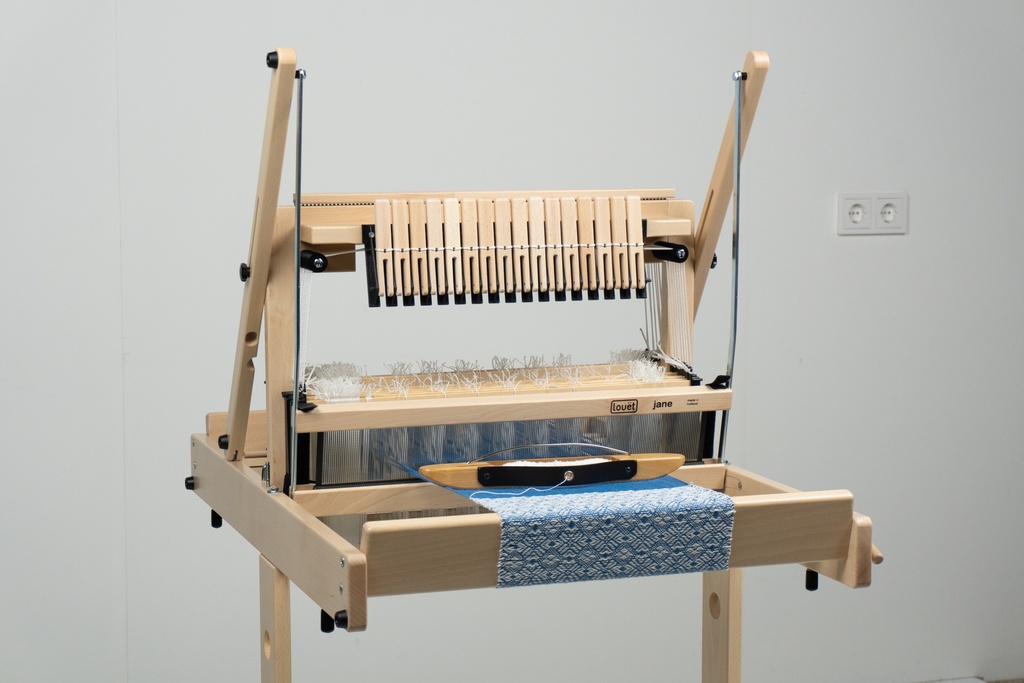

Jane table loom - 8/16 shafts

Best table loom on the market! The Jane table loom is standard eight harnesses. The 16-shaft model has been available since December 2023. Since 2024, the 8-shaft model has been expandable to 16 shafts with an extension. Available in 50, 70, and 90 cm weaving widths.

The Jane can be folded down compactly to 21 cm (8 1/4") with the warp in place. A floor stand is available separately. Jane has been designed after consultation with weavers, combining their wishes with our own years of experience, and also using successful techniques from its predecessor, the Louët Kombo. There is no cord wear, since the cords run entirely over rollers, and the overhead beater stays out of the way when throwing the shuttle, giving an optimal shed. Jane is made of lacquered beech and has a built-in raddle.
https://www.louet.nl/web/image/product.template/45394/image_1920?unique=aff1cb7

$ 2,220.44 2220.44 USD $ 2,220.44 Tax Excluded

Not Available For Sale

  • Shafts
  • Width
  • Expandable

This combination does not exist.

Contact Us

Terms and Conditions
Normal delivery time (if in stock): 2-3 working days.  Due to continued product development, product may differ from the image.

Share

Social media

Specifications

Shafts 8, 16
Width 90, 70, 40,, 50cm
Expandable 8 to 16, not exp.

The loom is partially assembled (except for Jane 90) and delivered with the following:

  • Shaft Bars
  • 2 x Lease sticks
  • 2 x apron bars
  • 16 warp sticks
  • 16x shaft sides
  • Screw driver pz2
  • Hardware bag
  • Stainless steel reed 40-10

    Reed 40 cm - height 10.5 cm

    Jane 40

    #WA0239

    Reed 50 cm - height 10.5 cm

    Jane 50

    #WA0312

    Reed 70 cm - height 12 cm

    Jane 70

    #WA0248

    Reed 90 cm - height 12 cm

    Jane 90

    #WA0257

Specifications

Wood type

Lacquered solid Beech

Weight

Jane 40: 8 kg (17.6 lb)

Jane 50: 10.5 kg (19.8 lb)

Jane 70: 13.5 kg (26.5 lb)

Jane 90: 16.5 kg (36.38 lb)

Dimensions (wxdxh)

Jane 40: 57 x 75 x 65 cm (22 3/8" x 29 1/2" x 25 5/8")

Jane 50: 67 x 75 x 65 cm (26 3/8" x 34 1/4" x 25 5/8" )

Jane 70: 87 x 75 x 65 cm (34 1/4" x 29 1/2" x 25 5/8")

Jane 90: 107 x 87 x 65 cm (42 1/8" x 34 1/4" x 25 5/8")

Jane 16 50: 67 x 87 x 65 cm (26 3/8" x 34 3/8" x 25 5/8")

Jane 16 70: 87 x 87 x 65 cm (34 3/8" x 34 3/8" x 25 5/8")

Texsolv heddles 205 mm

Jane 50-16 800 (8 bundles)

Jane 70-16 1200 (12 bundles)

Jane 90-16 1600 (16 bundles)

Jane 50-8 (expandable) 400 (4 bundles)

Jane 70-8 (expandable) 600 (6 bundles)

Jane 90-8 (expandable) 800 (8 bundles)


Product numbers:

WP0103 Jane 40-8   sold out and no longer available.

WP0167 Jane 50-8  - expandable

WP0168 Jane 70-8  - expandable

WP0150 Jane 90-8  - expandable

WP0165 Jane 50-16

WP0166 Jane 70-16

WP0169 Jane 90-16
