Jane table loom- 8 or 16 shafts
Best table loom on the market!

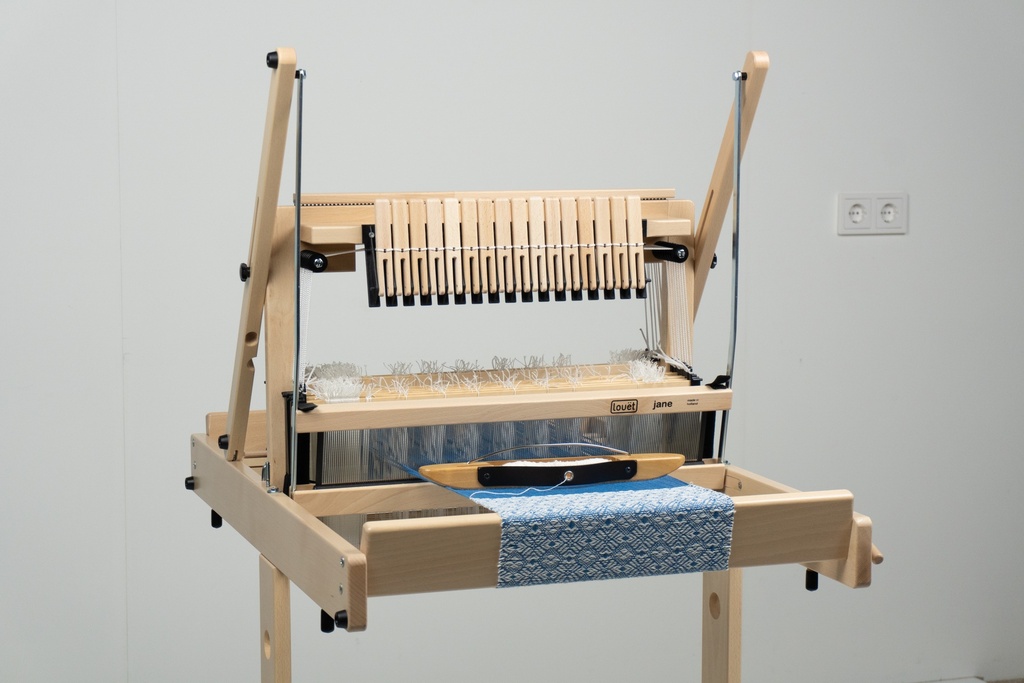

The Jane table loom is standard eight harnesses.
16 shaft model available beginning Dec 2023 - In 2024, the 8 shaft model will be expandable to 16 shafts with an extensions. Available in 50, 70 and 90cm weaving widths.
Jane can be folded down compactly to 14cm (5 1/2") high. A floor stand is available separately. Jane has been designed after consultation with weavers, at the same time using successful techniques from its predecessor, the Kombo. There is no cord wear, since cords run over rollers and the overhead beater stays out of the way when throwing the shuttle. Jane is made of lacquered beech and has a built in raddle. The loom is partly assembled and comes with:
Specifications
Shafts | 8 or 16 |
width | 90, or 70, or 40, or 50cm |
expandable | 8 to 16 or not exp. |
The original Jane 8 shaft (non-expandable) is available in the following sizes
- 40 cm (15 1/2")
- 70 cm (27 5/8")
Jane comes with the following standard items:
- stainless steel reed 40-10 (metric)
- 200/300/400 Texsolv heddles (205 mm)
- tie-up sticks
- leasesticks
- sixteen warp sticks
Jane 16 is available in the following sizes:
- 50 cm (20") and
- 70 cm (27 5/8") and
- 90 cm (35.5") weaving width
- Jane 16 50: 67 x 87 x 65 cm / 10.5 kg - folded 21cm
- Jane 16 70: 87 x 87 x 65 cm / 13.5 kg- folded 21cm
- Jane 16 90: 107 x 87 x 65 cm / 16.5 kg- folded 21cm
The loom is partially assembled (except for Jane 90) and delivered with the following:
- Stainless steel reed 40-10
- Texsolv heddles 205 mm
- Jane 50-16 800 (8 bundles)
- Jane 70-16 1200 (12 bundles)
- Jane 90-16 1600 (16 bundles)
- Jane 50-8 (expandable) 400 (4 bundles)
- Jane 70-8 (expandable) 600 (6 bundles)
- Jane 90-8 (expandable) 800 (8 bundles)
- 2 x apron bars
- 2 x lease sticks
- 16 warp sticks
Specifications
Wood type | Lacquered solid Beech |
---|---|
Weight | Jane 40: 8 kg (17.6 lb) Jane 50: 9kg (19.8 lb) |
Dimensions (wxdxh) | Jane 40: 57 x 75 x 65 cm (22 3/8" x 29 1/2" x 25 5/8") Jane 50: 67 x 75 x 65 cm (28 7/8" x 29 1/2" x 25 5/8") |
