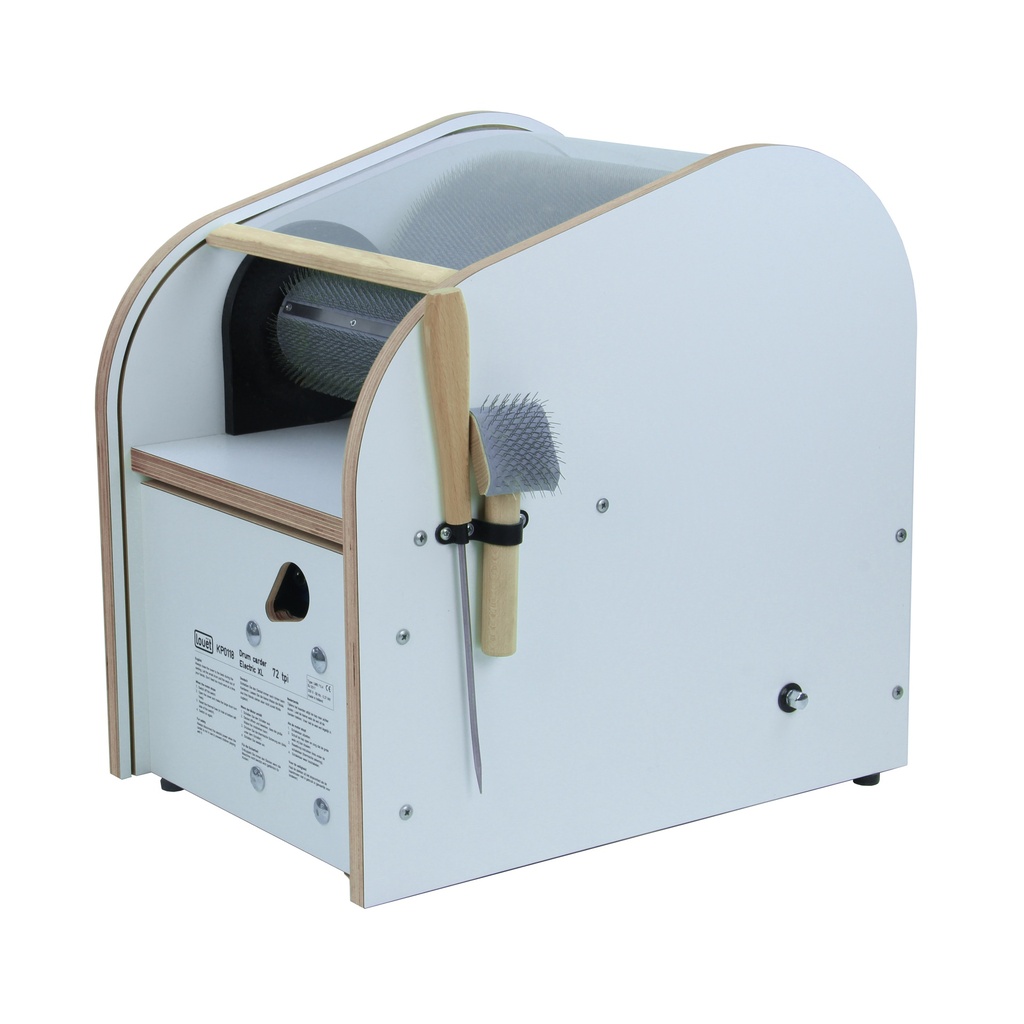

Electric Drum Carder ST 72 tpi - 230 V
This carder allows effortless two-hand feeding and is ideal
for processing large amounts of fiber. The rollers are 19 cm wide and fitted with 46 tpi
or 72 tpi carding cloth
made of nickel-plated steel wire on a cotton and natural rubber backing,
providing long-lasting durability. The roller acceleration is 4:1, while the
surface speed ratio between the large and small roller is 9:1, ensuring
effective carding. The typical capacity for Standard is approximately 80 grams per fleece and for XL is
120 grams per fleece. All electric models are delivered with a manual, a
carding booklet written by Deb Menz, a doffer brush, and a doffer pin, so you
can start carding immediately.
Product # KP0116
Product # KP0116
Je Dynamic Snippet wordt hier weergegeven...
Dit bericht wordt weergegeven omdat je niet zowel een filter als een sjabloon hebt opgegeven om te gebruiken.
The electric drum carder is designed for efficient,
hands-free carding and is delivered fully assembled. It is equipped with a
powerful built-in 370 W
motor (230 V, 50 Hz) that drives the large drum
via a geared V-belt system at approximately 90 r.p.m.
The front panel switch is protected by a safety plate: to operate the switch,
slide the plate over the rollers; when removing the fleece, the plate
automatically covers the switch again. The frame is made of waterproof glued
birch plywood with a white HPL top layer, and the carder sits on rubber
buffers, so it does not need to be bolted down. In case of overheating, the
motor switches off automatically.
|
Drum width |
Standard 19 cm (8’’) XL 30 cm (12’’) |
|
Large drum diameter |
25 cm (10’’) |
|
Weight |
Standard: 22 kg XL: 26 kg |
Construction & Safety Features
The motor is designed for 50 Hz operation. For regions with different mains voltage or frequency, we recommend consulting a qualified local electrical specialist, who can determine whether a suitable converter or transformer is needed to ensure a stable and correct power supply. Proper operation is guaranteed when the correct voltage and frequency are provided. Please note that Louët does not supply external converters or transformers and cannot guarantee their performance.
|
Voltage |
230 V |
|
Voltage range |
220-240 V |
|
Frequency |
50 Hz |
|
Power |
370 W |
