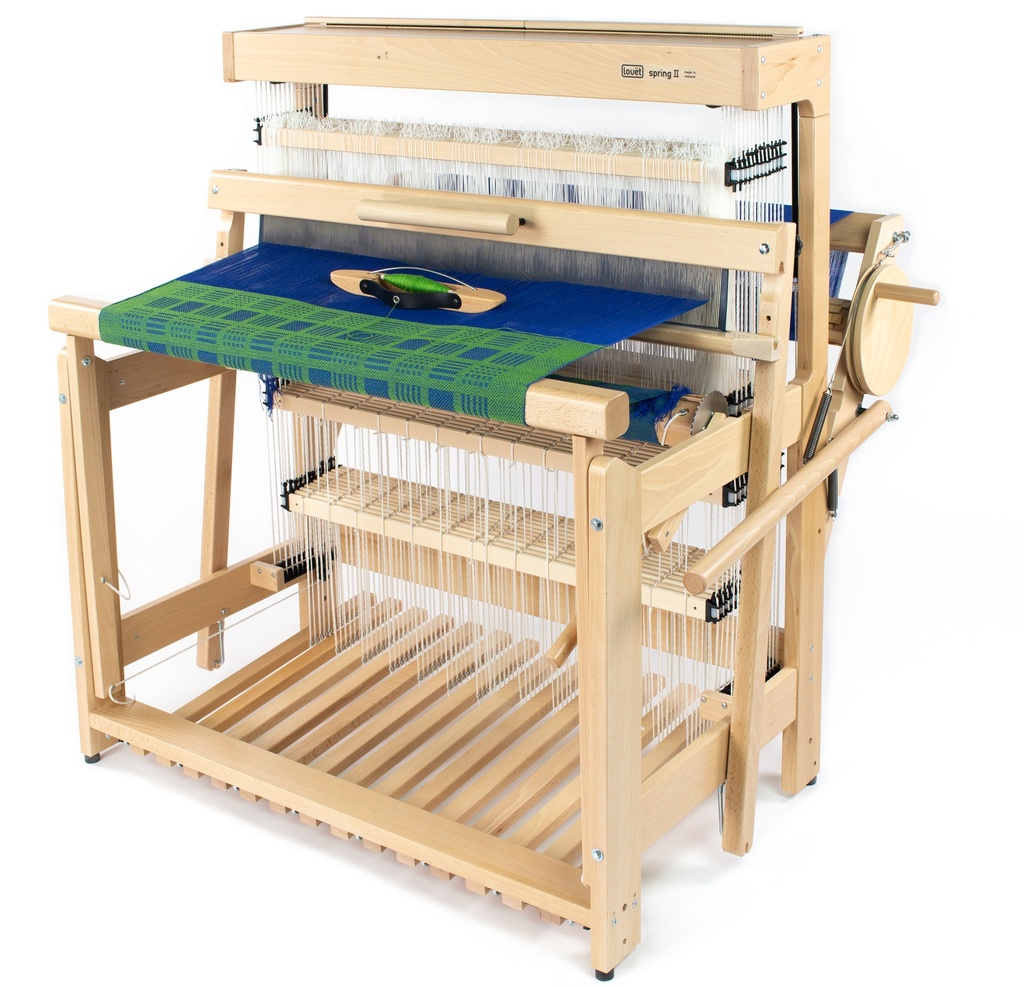

Spring 2 Weaving Loom

Spring is a countermarche loom available in 90 cm (35 3/8″) and 110 cm (43 1/4″) weaving width.   The loom can be ordered with eight or twelve harnesses.    in 2021 the Spring 2 was upgraded - see video link for details.

Spring 2

Louet continues to innovate and improve our products.   The Spring and Delta looms have long had a challenge when trying to change heddles (add or remove).   The new click lock system allows a user to easily add and remove heddles.   These are standard on all Spring and Delta looms.   We also offer a conversion kit for older Spring looms.


https://www.louet.nl/web/image/product.template/45426/image_1920?unique=64087cd

8,985.90 8985.9 USD 8,985.90 VAT Included

€ 6,000.00 VAT Included

Not Available For Sale

  • Shafts
  • width

This combination does not exist.

Terms and Conditions
Normal delivery time (if in stock): 2-3 working days.  Due to continued product development, product may differ from the image.

Specifications

Shafts 12 or 8
width 110 or 90,

The castle is completely pre-assembled. The shaft bars and lams can be adjusted exactly to height.   You can easily put the Texsolv heddles under tension, so that they do not shift or sag.  Slanted shafts are impossible and treadle tie-up is easy with pre-cut tie-up cords.

The loom is made of lacquered beech wood, includes a shelf and a raddle is built in. The loom is delivered partially assembled; The castle with shafts and lams is fully assembled. A stainless steel reed 40-10, 800 or 1200 Texsolv heddles (392 mm, depending on the weave width), lease sticks, and sixteen warp sticks are included.

The loom is made of lacquered beech wood, includes a shelf and a raddle is built in. The loom is delivered partially assembled; The castle with shafts and lams is fully assembled. A stainless steel reed 40-10, 800 or 1200 Texsolv heddles (392 mm, depending on the weave width), lease sticks, and sixteen warp sticks are included.

The loom is 120 / 140 cm wide, 94 cm deep and 115 cm high. The back beam section can be folded, after which the LOOM is only 72 cm deep.

Please note: the weaving bench is available separately.

Product numbers:

  • WP0170: Spring 90-8
  • WP0171: Spring 90-12
  • WP0172: Spring 110-8
  • WP0173: Spring 110-12


Additional information

Weaving width

90 cm (35 3/8”), 110 cm (43 1/4”)

Number of shafts

8, 12

Material

Dimensions

Dimensions

Spring 90: 125 x 94 x 116 cm
(48” x 37” x 45 1/2”)
Spring 110: 145 x 94 x 116 cm
(55” x 37” x 45 1/2”)

weights

Spring 90-8: 70 kg (150 lb)
Spring 90-8: 75.5 kg (162 lb)
Spring 110-8: 80 kg (165 lb)
Spring 110-8: 85,5 kg (177 lb)
