XL Drum Carder


Information

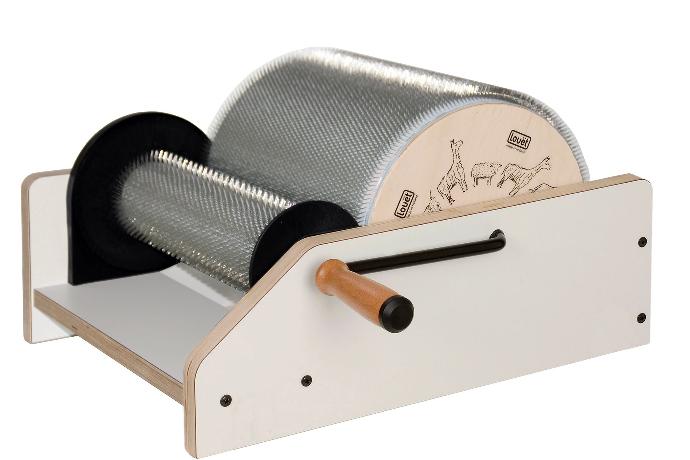

The Louët XL carder is a workhorse. With a width of 12 inches, batts of up to approx. 120 grams can be carded. Mixing colors and fibers is also easy on these carders.

The XL carder is available in 46 tpi (teeth per square inch) and 72 tpi. If you are primarily carding coarser wool or greasy fleece, the 46 tpi is your best option. If you will primarily card finer fibres, the carder with 72 tpi is most suitable. The carding cloth is made of nickel-plated steel wire on a bed of cotton and natural rubber, which gives it a long life.

The frame of the carder is made of water resistant birch plywood with a white HPL top layer. The drums are driven by a closed gear system. As a result, the carder requires very little maintenance and this keeps fiber from getting caught up in the gears.

In carders, as a rule, the acceleration between the drums is stated. For the standard carder it is 4:1. However, more important for the effectiveness of the carder is the difference in surface speed between the large and the small drum. To calculate this, multiply the acceleration by the ratio of the diameters of the two drums. For the standard Carder, this speed ratio is 9:1.


Extra information

Capacity

Approx. 80 gram per batt

Batt dimensions

Approx. 78 x 30 cm

Cloth

Density: fine (46 tpi) of extra fine (72 tpi); length of teeth: 14 mm

Wood used

Water resistant birch plywood with a white HPL top layer

Weight

9,5 kg


Instructions

KP0100 Carding instructions

 Product Number

KP0115: Drum Carder XL 46 tpi
KP0104: Drum Carder XL 72 tpi
